Clean Architecture

Both the Julee Framework and Julee Solutions organize their code using Robert C Martin’s “Clean Architecture” principles. This document will just focus on Julee’s interpretation and implementation.

Clean Architcture is strict about how the dependencies in code are organised. There are other similar schemes, such as Alistair Cockbourn’s “Hexagonal Architecture” (a.k.a “ports and adapters”), which share the same core goals of dependency inversion and separation of concerns. They both:

  • Place business logic at the center, isolated from external concerns

  • Make external dependencies (databases, UI, external services) plug into the core rather than vice versa

  • Use dependency inversion to point dependencies inward

  • Aim for testability and flexibility in swapping implementations

For comparison, Hexagonal architecture uses a simpler two-part model (inside/outside) focused on ports and adapters, without prescribing how to structure the business logic inside. Clean Architecture defines multiple concentric layers with specific responsibilities for each. Essentially, Clean Architecture is more prescriptive about the internal organization while Hexagonal Architecture is more minimal and focused on the boundary between core and infrastructure. It is essentially a 3 layer, rather than a 2 layer system.

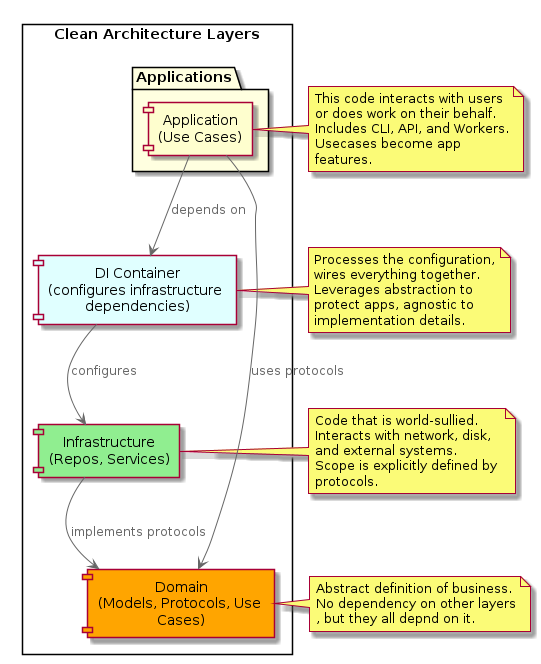

@startuml !include <C4/C4_Component> rectangle "Clean Architecture Layers" { component "Infrastructure\n(Repos, Services)" as infra #LightGreen package "Applications" as apps #LightYellow { component "Application\n(Use Cases)" as app } component "DI Container\n(configures infrastructure dependencies)" as di #LightCyan component "Domain\n(Models, Protocols, Use Cases)" as domain #Orange } infra -down-> domain : implements protocols app -down-> domain : uses protocols di -down-> infra : configures app -down-> di : depends on note right of app This code interacts with users or does work on their behalf. Includes CLI, API, and Workers. Usecases become app features. end note note right of di Processes the configuration, wires everything together. Leverages abstraction to protect apps, agnostic to implementation details. end note note right of infra Code that is world-sullied. Interacts with network, disk, and external systems. Scope is explicitly defined by protocols. end note note right of domain Abstract definition of business. No dependency on other layers, but they all depnd on it. end note @enduml

Demonstration

One of the contrib modules is a “Capture, Extract, Assembly, Publish” workflow (CEAP). This is a general purpose AI heuristic which is useful in a lot of circumstances. Rather than talking about the clean architecture in theory, we will walk through a part of this by way of an example.

This is an automated process with no user interaction, so it is done by an application called a Worker. We will specifically look at the pipeline called ExtractAssembleDataUseCase. This is the most complicated and interesting part of CEAP.

… uml:: ../diagrams/ceap_workflow_sequence.puml

A usecase is usually specific to a business domain, CEAP is unusual because it’s a generic, reusable pattern. That’s why it’s part of the framework, so you can reuse it without having to reinvent the wheel.

This usecase is understandable and testable, but it leaves a lot to the imagination. What is a KnowledgeService? a DocumentRepository? a AssemblyRepository, AssemblySpecificationRepository, KnowledgeServiceQueryRepository, or a KnowledgeServiceConfigRepository? How do they work? Those questions are answered separately.

Repositories store and access data. As long as the usecase can use them, it shouldn’t have to care about how they work. So “what is the repository” is first defined in the abstract, using a python Protocol specification, which is part of the domain model.

Second, “how do they work” is an infrastructure concern. There is code that implements the protocol using technology. Actually, we have more than one implementation of each - MinIO implementations for production, memory implementations for testing. The memory implementations are volatile and unsuitable for production, but useful as testing doubles in unit tests that run fast and in parallel without external dependencies.

So, each usecase defines a deterministic business process, but a lot of the heavy lifting is being done by the entity classes in the domain model. The repository protocols are strongly typed - they proscribe that inputs and outputs are either domain model classes or simple primitives.

Entities are more than dumb data containers. They are rich objects in their own right, with derivative methods that validate and calculate properties. They have both data and behavior, they encapsulate some of the business rules.

In general, these domain model abstractions (entities, repository and service protocols) serve to protect the usecase from the vagaries of the external systems. This also makes the implementations “swappable”, anything that conforms to the protocol will do. This is how it is possible for the Dependency Injection container to do its job - it provides the application with repositories and services that satisfy the protocols, and henceforth the usecases just use them.
